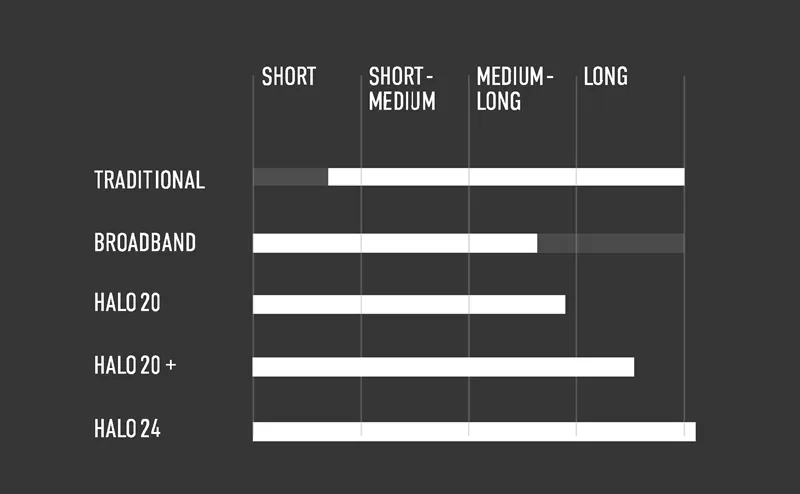

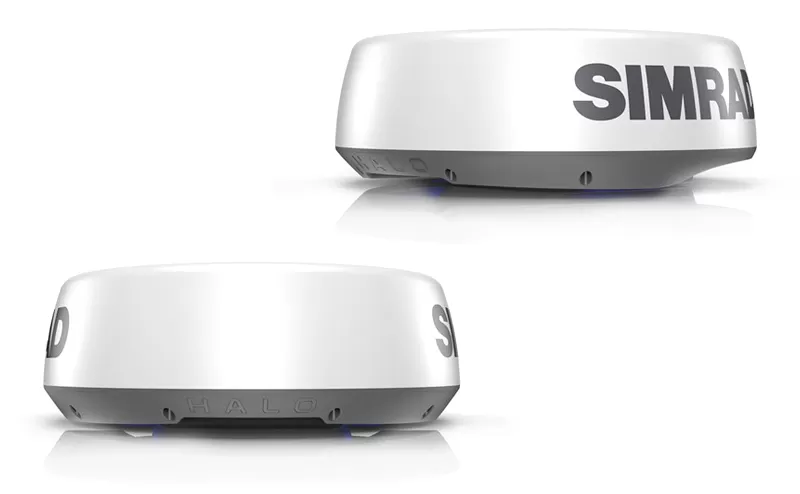

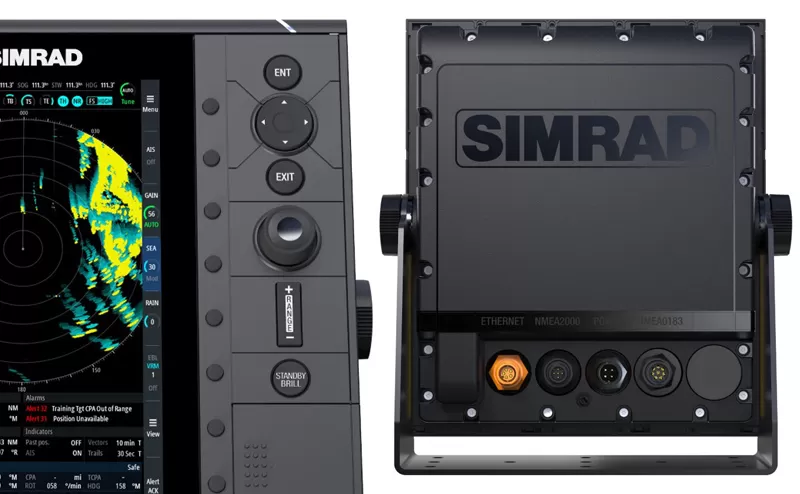

Simrad HALO24 Radar 48 NM supports multiple modes in which full 360-degree swing every second provides ultra-fast update of the picture at a distance of 1.5 NM and almost real for the rest of the range, and Pulse Compression radar technology does not compromise on target detection in any range of the range, while the beam sharpness ensures improved separation of small from large targets. At the same time, the Simrad R2009 Radar Control Unit screen is compatible with a wide range of radars via Ethernet connection, and NMEA 0183 and NMEA 2000 ports provide connectivity with additional direction and speed sensors, AIS transmitters and GPS receivers, as well as a directional sensor for use all possible features, including MARPA Target tracking.
Simrad HALO24 Radar + R2009 Control Unit Pack, At Price Of 3630.16 €
$353.00 Original price was: $353.00.$98.99Current price is: $98.99.
SKU: DM9IB 769306095 Categories: Electronics, Radars
- Multiple payment methods, 100% payment security
- Made of environmentally friendly materials
- Safe Transactions, Always
- Safe Shopping Guaranteed

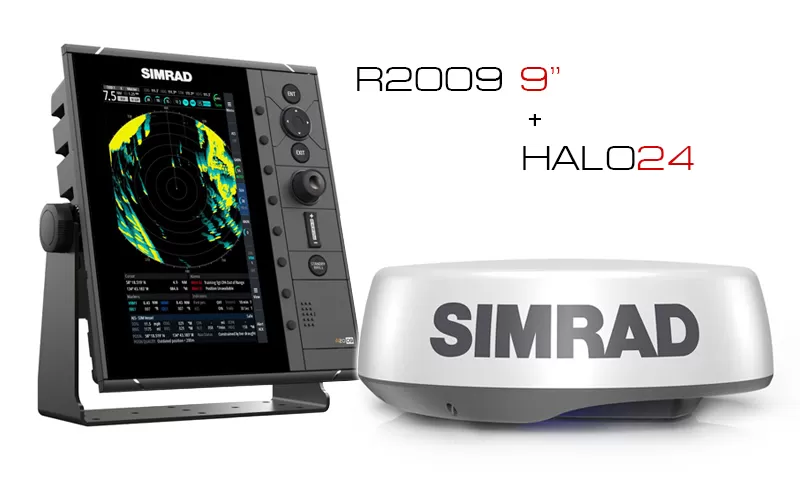

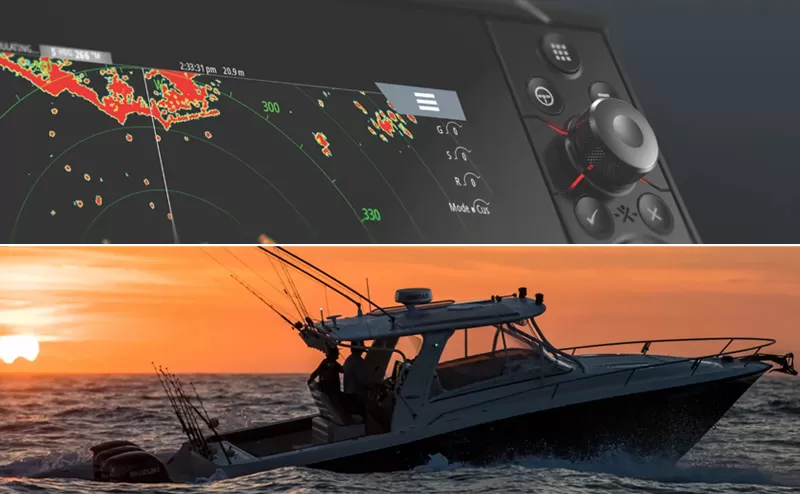

Ready set of powerful radar and professional screen with quality from Simrad and the exceptional capabilities of modern navigation technologies! The 9-inch R2009 pro screen and the high-speed HALO24 are a strong combination for any cruise, sport or fishing boat with a range of 48 nautical miles there will be no secrets left from you. Get ready for a crystal clear picture with just radar data – on a compact, ultra-bright display with convenient and intuitive controls that can be fixed to your own stand or via a built-in installation. In turn, radar with a speed of up to 60 rpm provides a picture in near real time and ensures your safety in poor visibility, congestion of boats around the ports and in general, eliminates any possible danger of collision.
| Max Range, scale | 48 NM (nautical miles) |
|---|---|
| Beam width | 3.9° H (-3dB) 2° with target separation on high x 22° V |
| Rotation speed | Up to 60 RPM (Range Dependent) |
| Supply Voltage | 10.5 – 31.2 VDC (12/24V systems) |
| Consumption | 20W / 29W (typical/max) |
| Max Wind Speed | 100 knots (51 m/s) |
| Weight | 6.75 kg (14.9 lbs) without cable |
| Diameter | 610 mm (24") |
| Size | 610mm dia x 225 mm H. (24" dia x 8.9" H) |
| Recommended Fuse Rating | 5A |
| Radar Modes | Bird, Course Up, Dual Range, Harbour, North Up, Offshore, Relative Motion, True Motion |
| Interface | Simrad MFD |
| Radar Technology | Pulse Compression |
| Warranty | 2 years |
| Screen size | 9" |
