Name: Simrad HD Digital Radar TXL-10S-4, At Price Of 5220.27 €
SKU: DM9IB 123610648
Availability: InStock

Simrad HD Digital Radar TXL-10S-4, At Price Of 5220.27 €

Original price was: $389.00.Current price is: $98.99.

Max Range, scale

Beam width

Rotation speed

Supply Voltage

Consumption

Max Wind Speed

Weight

Diameter

Size

Radar Modes

Radar Technology

Warranty

Clear

SKU: DM9IB 123610648 Categories: Electronics, Radars

Multiple payment methods, 100% payment security

Made of environmentally friendly materials

Safe Transactions, Always

Safe Shopping Guaranteed

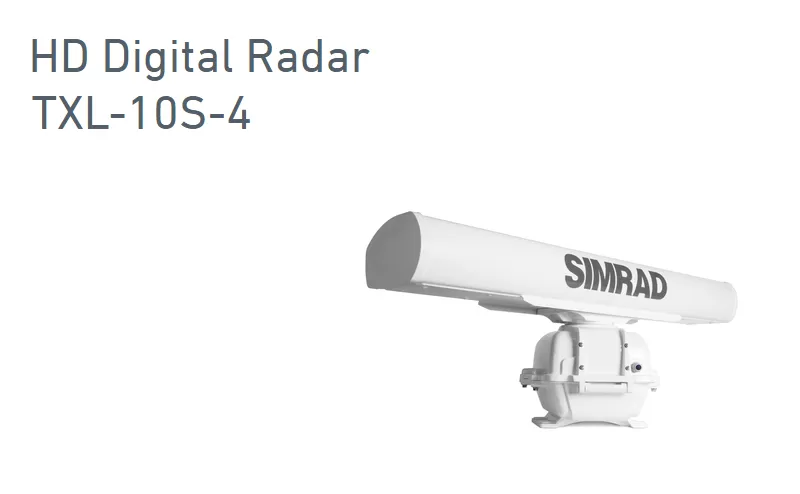

Simrad HD radar with a maximum range of 64 nautical miles , power 10 kW, compact pedestal plus highly efficient, 4-foot scanner – the perfect solution for sport fishing boats or motor boats with limited space. The uncompromising presentation of information about the situation around you, the flawless detection of small or distant targets, the clear picture and the minimization of the chaos on the screen – the so-called. Screen-Clutter are a safe way to move and maneuver safely in all conditions.

Simrad HD Digital Radar TXL-10S-4 withstands prolonged wind loads at speeds of up to 100 knots, has a long-life magnetron and a brushless motor for maximum longevity. Large range plus beam width of 1.8 ° horizontally and 2.0 ° vertically, make radar a reliable choice for both coastal fishing and sailing, as well as for more remote sea walks on any occasion.

Additional features for the TXL-10S-4 :

122cm, Open-array antenna with slim pedestal design

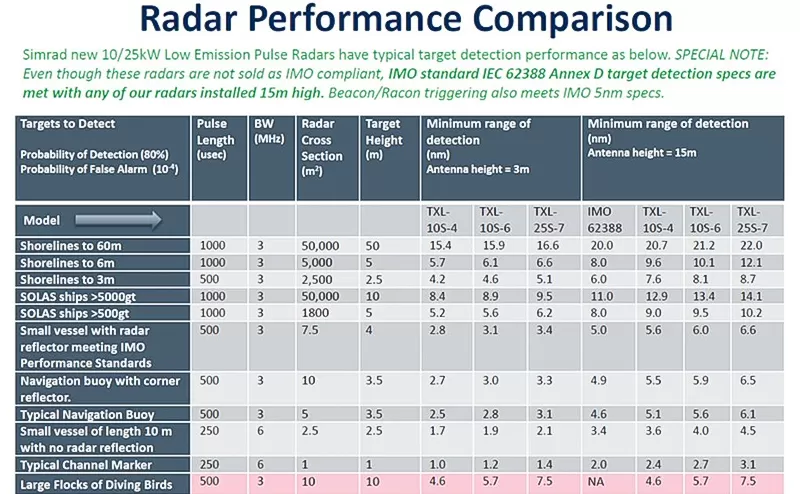

Meets IMO IEC62388 Annex D targeting specifications (triggers RACONs and SARTs at 5 NM ranges)
Automatic settings for Tune, Gain, and Sea Clutter in Harbor and Offshore modes
Dual EBL / VRM with alarm for incoming and pre-existing targets, regardless of mode
TrueColor display for improved goal differentiation
Radar Charting (Heading sensor required)
MARPA Target Tracking technology (Heading sensor required)
Ability to control via tablet (iPad / Android) with optional Go Free wireless module

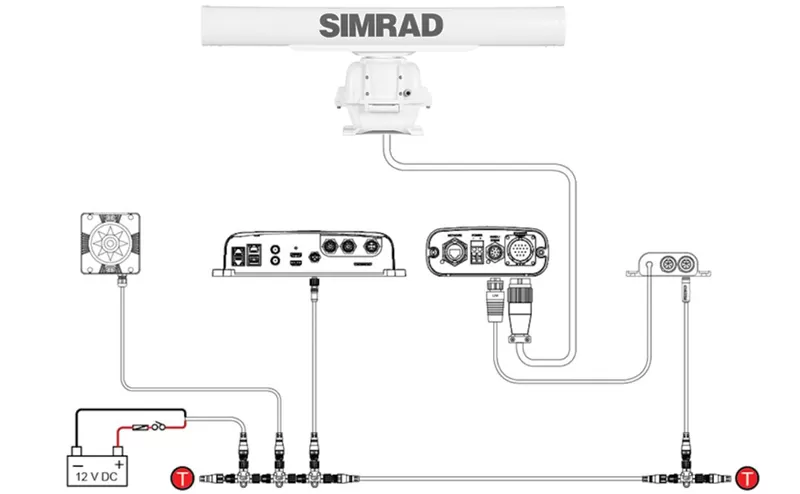

Ethernet connectivity compatible with all devices in the Simrad NSE / NSS / NSO series

Max Range, scale	64 NM (nautical miles)
Beam width	1.8° H +/-10% (4ft, -3dB width), 20° V +20% (4/6ft, -3dB width)
Rotation speed	27 RPM (4/6ft, Min 20 RPM at Max 100 Knots)
Supply Voltage	21.6 – 31.2 VDC (24V systems)
Consumption	230W (Max.) in maximum wind velocity
Max Wind Speed	100 knots (51 m/s)
Weight	34.0 kg
Diameter	1320 mm (51.9")
Size	461 x 457.4 x 260 mm (18.15” x 18.01” x 10.24”)
Radar Modes	Head Up, North Up
Radar Technology	Pulse
Warranty	2 years
