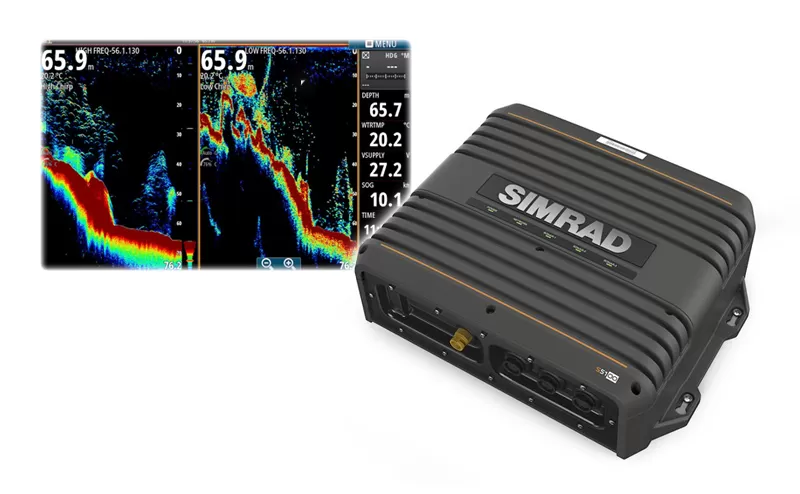

The output power is up to 3 kW, and the advanced CHIRP technology of the S5100 provides uncompromising performance with a crystal clear picture from the bottom, without noise or other interference for everyone from channels connected via Plug-and-Play 9-pin connectors. The module works perfectly with Airmar’s Wide-Angle CHIRP probes , has a high-speed Ethernet port and allows easy installation almost anywhere on board, so as to provide additional capabilities to already available multifunctional devices or those with built-in sonar. The processor is compatible with Ethernet connectivity models, a great option for the Simrad NSS evo3S and NSO evo3S series. Not compatible with GO and Cruise series devices.
Simrad S5100 Sounder With CHIRP 3kW NSS/NSO, At Price Of 1529.78 €
$335.00 Original price was: $335.00.$97.99Current price is: $97.99.
SKU: DM9IB 267754017 Categories: Electronics, Sonar Modules
- Multiple payment methods, 100% payment security
- Made of environmentally friendly materials
- Safe Transactions, Always
- Safe Shopping Guaranteed

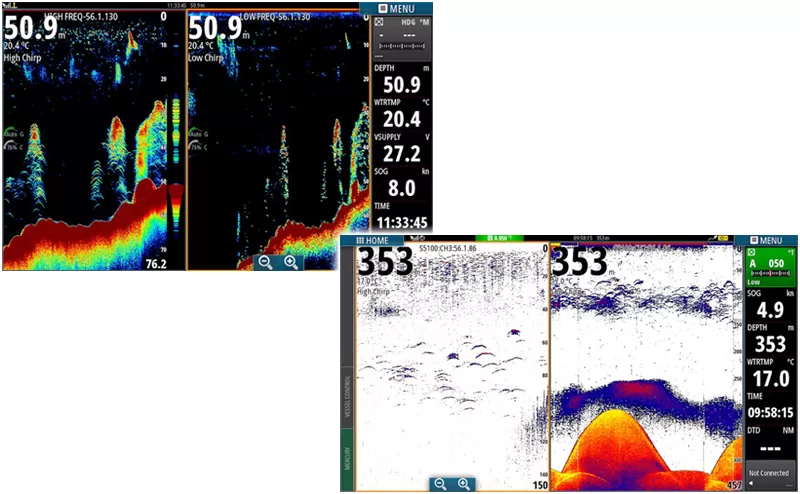

The powerful Simrad S5100 module has three completely independent channels capable of providing CHIRP Sonar coverage with high resolution, uniting depths different in scope. With the combination of three processor sensors you can handle a clear picture without noise and with data suitable for any fishing style, find small or large groups of fish, easily identify thermal wedges and target a specific depth. S5100 Sounder with CHIRP is compatible with wide-angle probes for greater coverage, and with the Split-Screen function you will simultaneously monitor different depths, as in depending on the probe, the maximum depth of the model is 3000 meters or 10000 feet.
| Consumption | 23W / 85W (typical/max) |
|---|---|
| Supply Voltage | 12 or 24 V (10.4 – 31.2) |
| Recommended Fuse Rating | 5A |
| Ethernet port | Yes |
| Interface | Simrad NSS / NSO |
| Networks | Ethernet |
| Water resistance | IPX5 |
| Weight | 4.7 kg (10.4 lbs) |
| Size | 340 x 100 x 250 mm (excluding connectors) |
| Warranty | 2 years |
